FIRE POLY FPCC


FIRE RETARDANT COATING
for
COMPOSITES ● FIBERGLASS ● PLASTIC PIPE


CLASSIFICATION FOR PLASTIC PIPE
INTERNATIONAL MARITIME ORGANIZATION
(MQ) RESOLUTION A 753 (18) ASTM F1173-95
FIRE RETARDANT COATING

TESTING AGENCY
SOUTHWEST RESEARCH INSTITUTE

TEST MATERIAL TESTED RESULTS
Fire Endurance and Hydrostatic Evaluation Based on International Maritime Organization Resolution (MQ) Resolution A.753(18); Appendix 2 and ASTM F1173-95 Section A5 Wet Condition Classification of Water Filled Plastic Pipe Conley epoxy 20, 6-in. FLGXFLG Spool pipe coated with Flame Safe Chemical Corporation's Fire Poly FPCC Passed

FIRE ENDURANCE
PASSED
Number of fire retardant coats
3
Rate per coat (ft2/gal)
1050



FIRE RETARDANT COATING
for
STYROFOAM ●POLYURETHANE FOAM ● POLYSTYRENE
TEST MATERIAL TESTED RESULTS
NFPA 701

3/4" Styrofoam painted with green latex paint and coated with Flame Safe's Fire Poly FPCC

3/4" Styrofoam (white) coated with Flame Safe's Fire Poly FPCC

Passed



Passed


fire retardant logo

FIRE POLY FPCC

TECHNICAL DATA

(Coating for Plastic Pipe)

PRODUCT DESCRIPTION:    Aqueous Based Resin

PRODUCT ANALYSIS
Total Solids
46%   PH
2.5 - 2.8
Weight per gallon
10.7 lbs Flash point
Non-Flammable
Specific gravity
1.33 Color
Water clear at 78°F. - Slight haze at 50°F. or lower
Volatability
Non-Volatile Solvents
Water(Contains no petroleum or derivatives of petroleum)
Anti-Fungus
excellent Resistance Bacterial
Good Resistance
Linear shrinkage
None Moisture Absorption
Slight
Corrosive
Mildly Toxic
None (when dry)
Scrubability
1000 cycles Incompatiblilty
Strong oxidizers, alkalis or acids (materials to avoid)
Toxic
None, when dry

RECOMMENDED USE: Pressurized plastic, composite piping systems, styrofoam, polyurethane foam, styrene

FLAME SAFE FIRE POLY FPCC Specially formulated for use on plastic pipe

ENVIRONMENTAL REGULATION:

This product complies will U. S. Federal Regulations concerning the use of lead in paint and hydrocarbon emissions.



fire retardant logo
QUICK REFERENCE FOR APPLYING FIRE POLY 100
MATERIAL
APPLICATION
COVERAGE

Plastic Pipe, PVC pipe, Composite pipe



Styrofoam, Polyurethane foam, styrene

Be sure surface is clean and dry before treating.

Apply with sprayer head held at 8 to 12 inches from surface.

Be sure to allow drying between each coat.

Apply three (3) coats at 1050 sq. ft. per gallon with the final coverage rate of 350 sq. ft. per gallon



Apply three (3) coats at 600 sq. ft. per gallon with the final coverage rate of 200 sq. ft. per gallon

EXTERIOR / INTERIOR

          All surfaces to be treated must be clean and dry. Fire Poly FPCC is water based, clear liquid that becomes insoluble when dry. If over-coating is intended, Fire Poly FPCC is an excellent primer for use under or over latex paints.

DO NOT DILUTE OR MIX FIRE POLY 100 WITH ANY OTHER PRODUCTS.

Avoid wasteful runs and dripping. It should be noted that unlike some products, materials treated with Fire Poly FPCC require no special cutting tools or special fasteners. Contact parts of any equipment should be stainless steel or plastic to prevent chemical reaction and breakdown. Storage may be done in polyethylene containers.


pipe

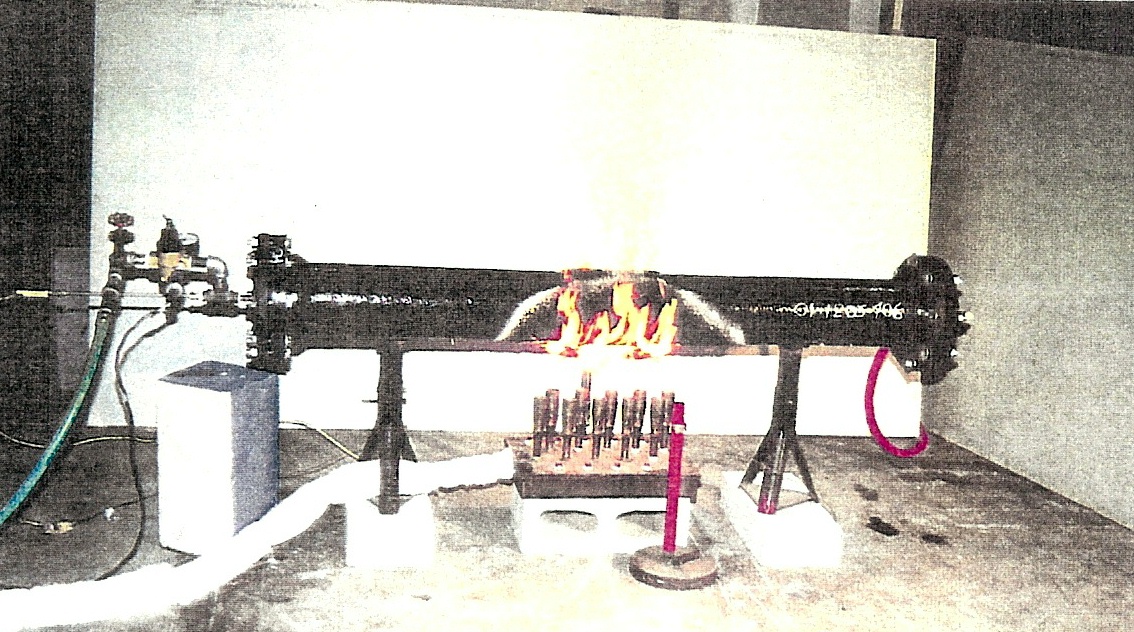

pipe test 1 pipe test 2

CAUTION:

          Product must not freeze. It must not be thinned or diluted.


OVERSPRAY:

        The overspray will not harm plants or animals. Spills can be flushed with water. A rag wetted with   bleach and water mix will clean up spotting.


CLEAN UP PROCEDURE:

          Airless Equipment.

1. Run clear water through the system until coating is flushed out. When minor sudsing on surface stops, the system is flushed.

2. Run bleach and water mix (1 part to 4 parts) through system as solvent for cleaning any residue.

            3. Repeat Step 1 if any foaming occurs in Step 2.

            4. Lubricate system as specified by equipment manufacturer to combat rusting.

If two or more applications are planned in the same day, the sprayer can be kept clean by running water through the system between applications.


          Brushes/Rollers.

              1. Clean immediately after use.

              2. Wash thoroughly with bleach and water mix (1 part to 4 parts).


SAFETY FIRST

Use approved safety devices (ropes, belts, ridge hooks, ladder, etc.) When working on steep or high areas. Take EXTREME CARE not to step on wet treated area. Surface may be slick until dry.

It is good practice to wear respirator or mask and protect hands with rubber gloves when spraying any coating or chemical. When engineered air control is not feasible, use properly maintained and properly fitted NIOSH approved respirator for solvent vapors. A dusk mask does not provide protection against vapors.

If eye contact occurs, flood with water for fifteen (15) minutes and call a physician. KEEP OUT OF REACH OF CHILDREN. DO NOT TAKE INTERNALLY.
